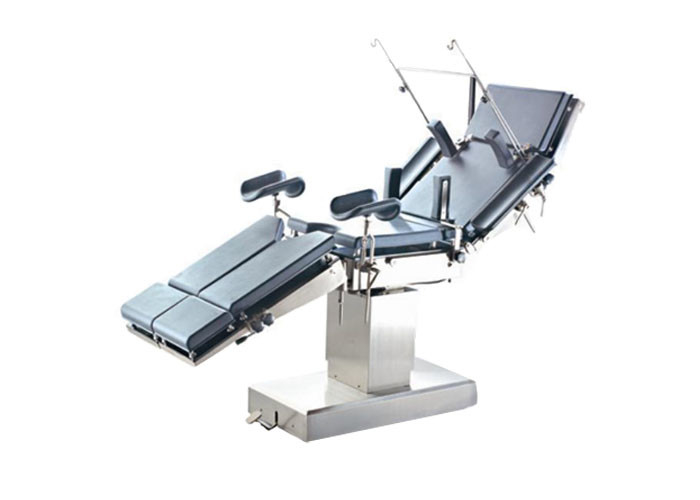

Model YA-XD1A Electric Operating Table

Model YA-XD1A Electric Operating Table

Model YA-XD1A Electric Operating Table

Product Details:

Place of Origin: CHINA
Brand Name: MEDIK
Certification: CE/ISO
Model Number: YA-XD1A
Contact Now
Detailed Product Description

Model YA-XD1A Electric Operating Table



Features:

  • The YA-XD1A is designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery,urology, proctology, gynaecology and others.
  • Contours to virtually all patient postures with a five-section tabletop
  • Accommodates virtually all patients with generous height ranges
  • Wire controller for different movements and Column control panel with locking function for movements
  • Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to wire hand controller
  • The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs
  • Divided, two parts leg rest segments are adjusted by means of gear transmission
  • The structure is made of SUS304 mirror stainless steel
  • The table base is controlled by a foot lever
  • The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents



Specifications:



Table Length 86" (2150 mm)
Table Width 20" (500 mm) (22.5" with extenders)
Table Height Range 29.5" to 39.5" (750 to 1000 mm)
Patient Weight Capacity 396 lbs (180 kg) patient support, including raise/lower (centered on the column)
616 lbs (280 kg) total support, including the accessories of surgical table
Table Shipping Weight 616 lbs. (280 kg)
Trendelenburg / Reverse 25°/ 25°
Lateral Tilt (left/right) 20° / 20°
Head Section +30° to -90°
Back Section +45° to -15°
Leg Section 0 to -90°
Spread Angle of leg plates 90°
Integrated battery charger Yes
Kidney Elevator height adjustment 4.5” (110mm)



Postures:

Model YA-XD1A Electric Operating Table
