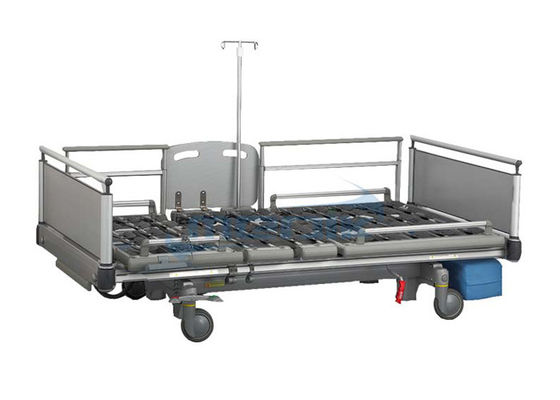

Unquie Butterfly Design Platform Hospital Intensive Care Bed for VIP Room
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | MEDIK |
| Certification: | CE/ISO |
| Model Number: | YA-DCR5PCSA |
Detailed Product Description
| Overall Size: | 2200*985*420-780mm | Safe Working Load: | 250kg |
|---|---|---|---|
| Extending Function: | 2200-2300mm | Platform: | Butterfly Design Platform Can Distribute The Pressure Of The Body Evenly |
Unquie Butterfly Design Platform Hospital Intensive Care Bed for VIP Room
A new design concept of electric bed, a high-end, simple and humane care in one of the new ICU beds. Suitable for hospital ICU, CCU ward, special care unit VIP room.
Key features:
- Column design
- Whole aluminum alloy frame
- Unique telescopic aluminum railing foldable and can be sliding under to the platform
- Unquie butterfly design platform can distribute the pressure of the body evenly
- Manual CPR lever located on both sides of the bed
- Bumper caster located on four corners
- Central brake system with 150mm diameter
- Bed extenstion in mechanical way
- Auto-regress to remove the pressure of the abdomen when adjust the backrest
- Auto-counter to provide the patient from sliding onto foot end
- Nurse control located under the foot panel can sliding in and out
- Hand remote control can stuck on the railing
- Detachable head/foot board with easy lock
Specifications:
| Technical parameters | |
| Model | YA-DCR5PCSA |
| Size | 2200*985*420-780mm |
| Bed extension | 2200-2300mm |
| Lying surface | 1900*900mm |
| Overall Height | 420-780mm |
| Back secticn adjustable | 0° to 75° |
| Knee secticn adjustable | 0° to 45° |
| Trendelenburg | 0-12 ° |
| Reverse Trendelenburg | 0-12 ° |
| Safe working load | 250kg |
| Specification | |
| Bed Frame | Whole aluminum alloy frame |
| Bed platform | Unquie butterfly design platform can distribute the pressure of the body evenly |
| Motor | Linak motors |
| Hand remote controller of all electrically operated functions and movements | |
| Nurse control | Nurse control located under the foot panel can sliding in and out |
| Handrails | Unique telescopic aluminum railing foldable and can be sliding under to the platform |
| Head and Foot board | Detachable head/foot board with easy lock |
| Castors | Central brake system with wheel diameter of 150mm |
| Bumper castors | Bumper castors on 4 corners of bed |
| Special Features | |
| Auto-counter function | Auto-counter to provide the patient from sliding onto foot end |
| Auto-regress function | Auto-regress to remove the pressure of the abdomen when adjust the backrest |
| Manual CPR | Manual CPR lever located on both sides of the bed |
