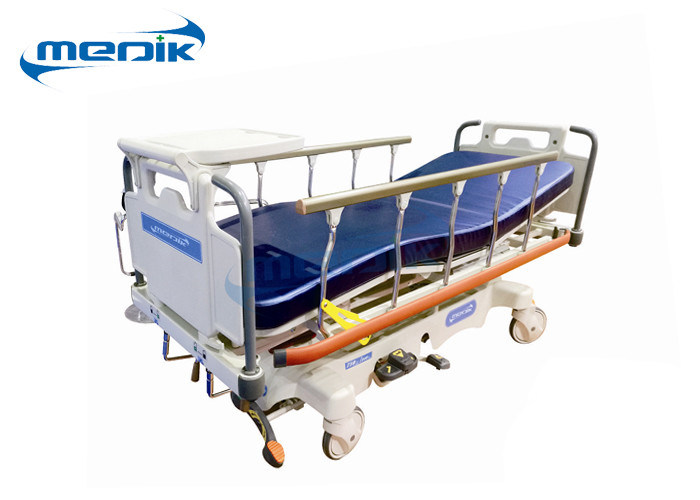

Medical Patient Transport Trolley With Head/Foot Board

Medical Patient Transport Trolley With Head/Foot Board

    • Medical Patient Transport Trolley With Head/Foot Board
    • Medical Patient Transport Trolley With Head/Foot Board
  • Medical Patient Transport Trolley With Head/Foot Board

    Product Details:

    Place of Origin: CHINA
    Brand Name: MEDIK
    Certification: CE/ISO
    Model Number: YA-TH5CSH
    Contact Now
    Detailed Product Description
    Size: 216*82*50-90cm Safe Weight Load: 295kg
    Back Section Adjustable: 0° To 85° Trendelenburg/Reverse Trendelenburg: 0° To 16°

    Medical Patient Transport Trolley With Head/Foot Board



    With its 295kg weight capacity, our procedural Stretcher is an economical solution to help accommodate all patient conditions as well as your needs in this uncertain environment.

    A rush to the operating room is not just about running down hallways and turning corners. It’s about the minute details that contribute to a safe and comfortable experience for the patient.



    Key features:

    1. Easy to operate the stretcher due to ergonomic design.
    2. World brand Power-packer durable hydraulic pump.
    3. Big diameter wheel of 200mm for easy transportation to across the barrier steering function makes it significantly easier to steer the bed in narrow place, stabilizes the direction of track and makes it easier to turn the stretcher.
    4. The wheel is retractable which makes the cleaning easier.
    5. Moulded base chassis with reservation for oxygen cylinder
    6. Two column structure design with wide space underneath make the on bed C-arm examination accessible without moving patient.
    7. Bumper caster located on the four corners
    8. Optional X-ray translucent platform for X-ray examination.
    9. Monitor shelf (optional)
    10. ABS head/footboard (optional)
    11. Heavy duty structure improve the loading capacity up to 330Kg.
    12. All moulding parts prolong the life-span of all accessories.







    Technical Specifications:



    Specification
    Model YA-TH5CSH
    Size 205*84*50-90cm
    Weight(without surface/accessories) 128kg
    Safe Weight Load 295kg
    Protection class IPX4
    Deck Dimension 190*70cm
    Siderails Size 137*44cm
    Castors: Four 200mm castors with central locking system
    Bumper castors Bumper castors on 4 corners of stretcher
    Functions:
    High-Low: 50-90cm
    Back section adjustable 0° to 85°
    Knee section adjustable 0° to 35°
    Trendelenburg 0° to 16°
    Reverse trendelenburg 0° to 16°
    Standard Accessories:
    Telescopic IV stand 1 piece
    Pushing handle on both ends
    Mattress 1 piece
    Sidesails
    Head/ Footboard
    Optional Accessories
    Drawer for storage
    Apparatus shelf


    Medical Patient Transport Trolley With Head/Foot Board
