Hospital and home health care furniture
YA-GTE500 Electric Surgical Operating Table
 |
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MEDIK |
| Certification: | CE/ISO |
| Model Number: | YA-GTE500 |
Detailed Product Description
| Size: | 2060*550*700-1000mm | Load Capacity: | 250kg |
|---|---|---|---|
| Structure: | Base And Column Cover Is Made Of 304 Stainless Steel | Feature: | Suitable For C-arm And X-ray |

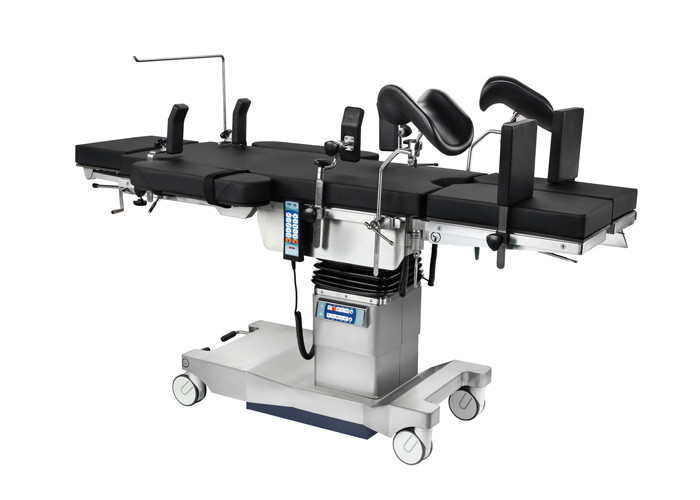

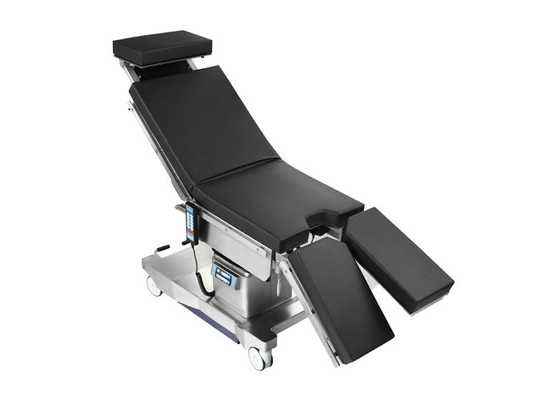

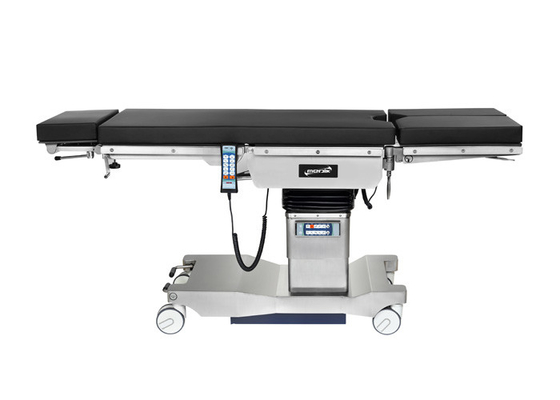

YA-GTE500 Electric Surgical Operating Table
Introduction:
Engineered for increasingly complex surgical scenes,YA-GTE500 comes with intelligent automatic control system satisfying various demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.YA-GTE500 is an ideal electric surgical table.
Technical parameters:
| Technical Data | |
| Tabletop Length/width | 2060/550mm |
| Tabletop Elevation(up/down) | 1000/700mm |
| Trendelenburg/Anti-tredelenburg | 25°/25° |
| Lateral tilt | 15°/15° |
| Head plate adjustment | 45°/90° |
| Leg plate adjustment | down:90°,outward:90° |
| Back plate adjustment | +75°/-20° |
| Sliding | 350mm |
| Kidney Bridge | 110mm |
Standard accessories
| Anesthesia screen frame | 1 piece |
| Shoulder support | 1 pair |
| Armrests | 1 pair |
| Waist support frame | 1 piece |
| Leg support holder | 1 pair |
| Foot support | 1 pair |
| Hand remote | 1 piece |
| Fixing clamp | 8 pieces |
Benefits:
- Longitudinal shift: the longitudinal shift of up to 350mm enables optimum access with C-arm without needing to reposition the patient or to reverse the positioning of the patient.Each selected fluoroscopy point may easily be moved in front of or behind the column and ensures comfortable access to the patient from initiation to surgery.
- Double control system,standard override panel control makes the control safer
- It can easily be moved to any desired position as four castors.
- Leg plate: imported gas spring for easy controls
- Memory pad with antistatic, waterproof design
- Built-in kidney bridge
- Battery power for 50-80 operations
- Extreme weight load capacity of 250 kg with highest safety and stability
