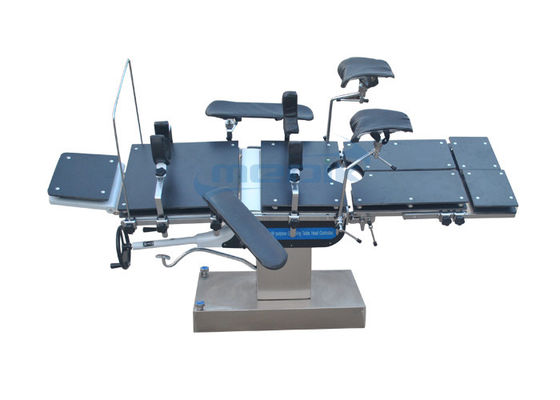

YA-3008AB Multi-Purpose Hydraulic Operating Table

Contact Now

Detailed Product Description

YA-3008AB Multi-Purpose Hydraulic Operating Table

Features:

The YA-3008AB is designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery,urology, proctology, gynaecology and others.
Four (Five) section table top with five (six) segments
Operating table surfaces are easy to clean and resistant to disinfecting agents
Table top height adjustment with use of hydraulic foot pump
Back rest segment angle inclination, leg rest segment (regarding five and six segments table top), head rest segment functions are supported by gas springs
Kidney elevator (in case of five and six segment table top adjusted manually with use of crank placed at patient’s head side)
Lateral tilts, Trendelenburg and Reverse Trendelenburg functions are executed with the rods placed at patient’s head side
Divided, two parts leg rest segments are adjusted by means of gear transmission
Double layer top surface for placement of X-ray holder tray

Specifications:

Table Length	81.6" (2040 mm)
Table Width	20" (500 mm) (22.5" with extenders)
Table Height Range	29.5" to 37" (740 to 940 mm)
Patient Weight Capacity	396 lbs (180 kg) patient support, including raise/lower (centered on the column) 506 lbs (230 kg) total support, including the accessories of surgical table
Table Shipping Weight	616 lbs. (280 kg)
Trendelenburg / Reverse	25°/ 30°
Lateral Tilt (left/right)	20° / 20°
Head Section	+30° to -90°
Back Section	+80° to -10°
Leg Section	0 to -90°
Spread Angle of leg plates	90°
Kidney Elevator height adjustment	4.7” (120mm)
